Ever wondered why your glass objects look dark, or your interior scenes lack that subtle, bounced lighting? The answer often lies in Blender's Light Path settings. Understanding how Cycles, Blender's powerful path-tracing render engine, simulates light is crucial for achieving photorealistic results. This guide will walk you through these settings, with a special focus on transparent materials like the glass panes shown above.

1. What Exactly Are Light Paths?

Cycles works by simulating how individual rays of light travel from light sources (or the camera, in a process called backward path tracing), bounce off surfaces in your scene, and eventually reach the camera. Each "bounce" contributes to the final color and illumination of a pixel in your render. The Light Path settings control how many of these bounces Cycles is allowed to calculate for different types of surfaces and interactions.

More bounces generally mean more realism, especially for indirect lighting, complex reflections, and refractions through materials like glass. However, more bounces also mean longer render times. Finding the right balance is key.

2. Finding the Light Path Settings

You'll find the Light Path settings in the Render Properties panel. With Cycles selected as your render engine, look for the "Light Paths" dropdown section.

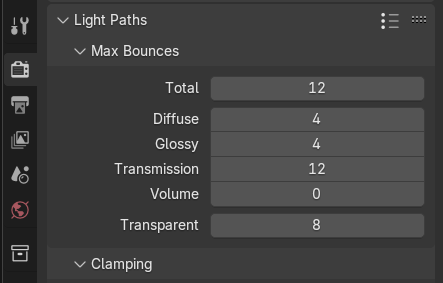

Blender Light Paths panel showing default Max Bounces settings.
The Light Paths panel in Render Properties, showing the default Max Bounces.

This panel is divided into subsections, with "Max Bounces" being the primary area we'll focus on. You'll also see presets available, which can be a good starting point.

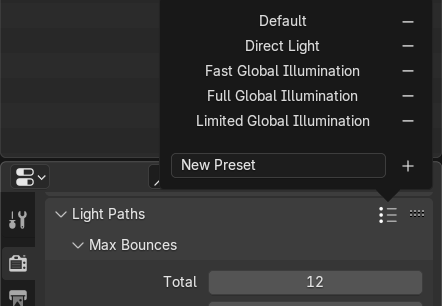

Blender Light Path presets menu showing options like Default, Direct Light, and Full Global Illumination.
Light Path presets offer quick configurations for different scenarios.

3. Understanding Max Bounces: The Core Controls

The "Max Bounces" section dictates the maximum number of times a light ray can bounce for different types of interactions:

  • Total: This is an overall cap on the number of bounces a light ray can make, regardless of type. If other specific bounce types are higher, they will be limited by this Total value.
  • Diffuse: Controls bounces off matte or rough surfaces (e.g., a painted wall, unpolished wood). Higher values lead to better indirect illumination in interior scenes, as light scatters more realistically.
  • Glossy: Governs bounces off shiny, reflective surfaces (e.g., metal, polished floors, mirrors). More glossy bounces mean more detailed and inter-reflections.
  • Transmission: This is crucial for materials that light passes *through*, like glass or water (materials with a Glass BSDF or Principled BSDF with Transmission > 0). It controls how many refractive surfaces a light ray can penetrate.
  • Volume: For bounces within volumetric materials like smoke, fog, or SSS (Subsurface Scattering).
  • Transparent: This controls bounces for fully transparent shaders (like a Transparent BSDF often used for alpha cutouts on leaves or decals). Importantly, it also significantly affects **transparent shadows** – how many transparent or transmissive objects a shadow ray can pass through before the shadow becomes opaque.

Setting these values too low can lead to unrealistic or dark renders. For instance, low diffuse bounces can make corners and indirectly lit areas appear unnaturally dark. Low glossy bounces can make reflections look incomplete or black.

4. The Importance of "Enough" Bounces: The Glass Pane Test

Let's revisit our hero image: a series of parallel glass panes. Rendering such a scene correctly heavily relies on adequate Transmission and Transparent bounces.

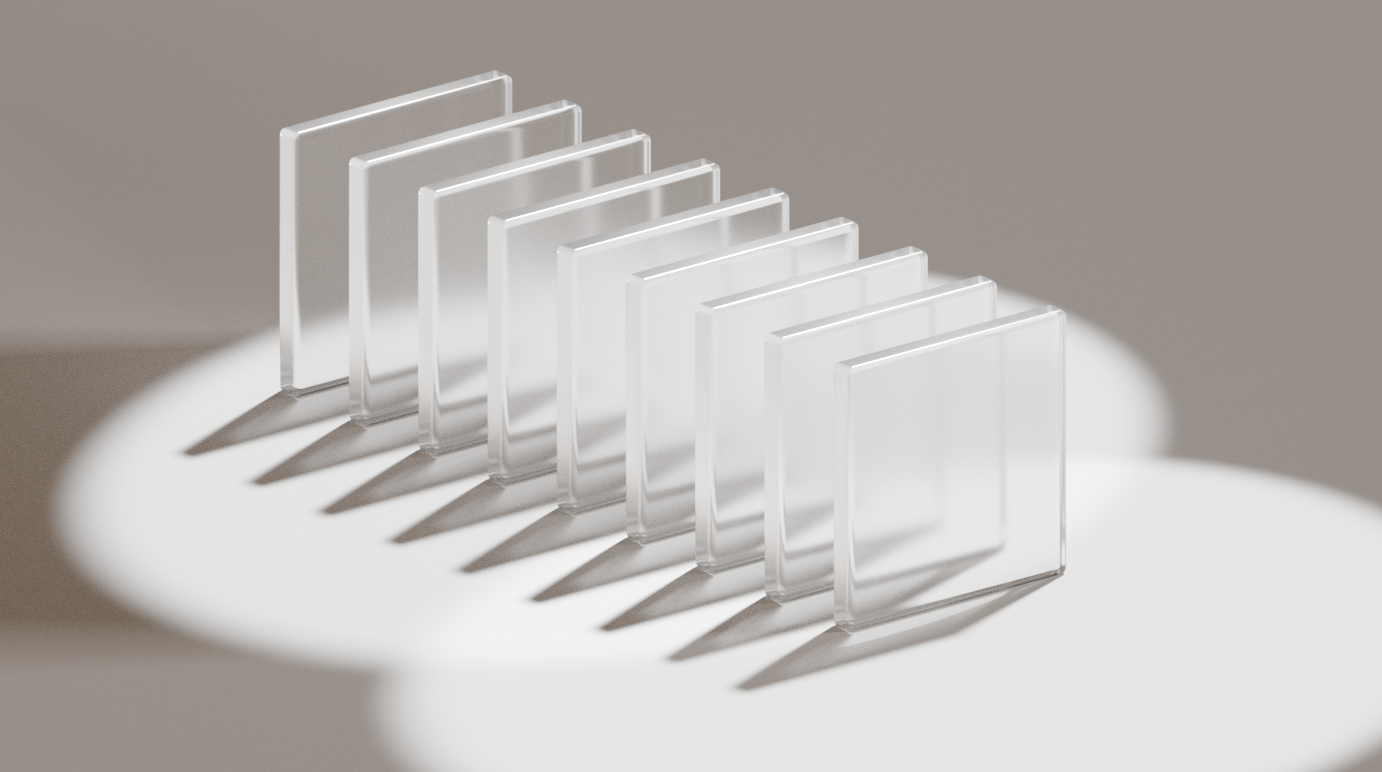

Render of multiple glass panes showing correct light transmission and shadows due to sufficient bounces.
Our example: multiple glass panes. Correctly rendering these requires sufficient Transmission and Transparent bounces. Here all the bounces were set to 128.

What Happens with Insufficient Bounces?

Imagine our scene has 8 glass panes. If your Light Path settings are too low, for example:

  • Transmission Bounces = 2
  • Transparent Bounces = 2

You'd likely encounter these problems:

  • Visual Appearance (Transmission): Light rays trying to pass through the stack of glass would be terminated after hitting just two panes. This means the panes beyond the second one would appear dark or black, and you wouldn't be able to see through the entire stack. The scene would look broken.
  • Shadows (Transparent): Shadow rays cast by these panes would also only pass through two transparent surfaces. The shadow cast by the stack would become almost fully opaque, as if it were a solid block, rather than showing the subtle light attenuation you'd expect from multiple layers of glass.

Essentially, the render fails to capture the physical reality of light interacting with multiple transparent layers.

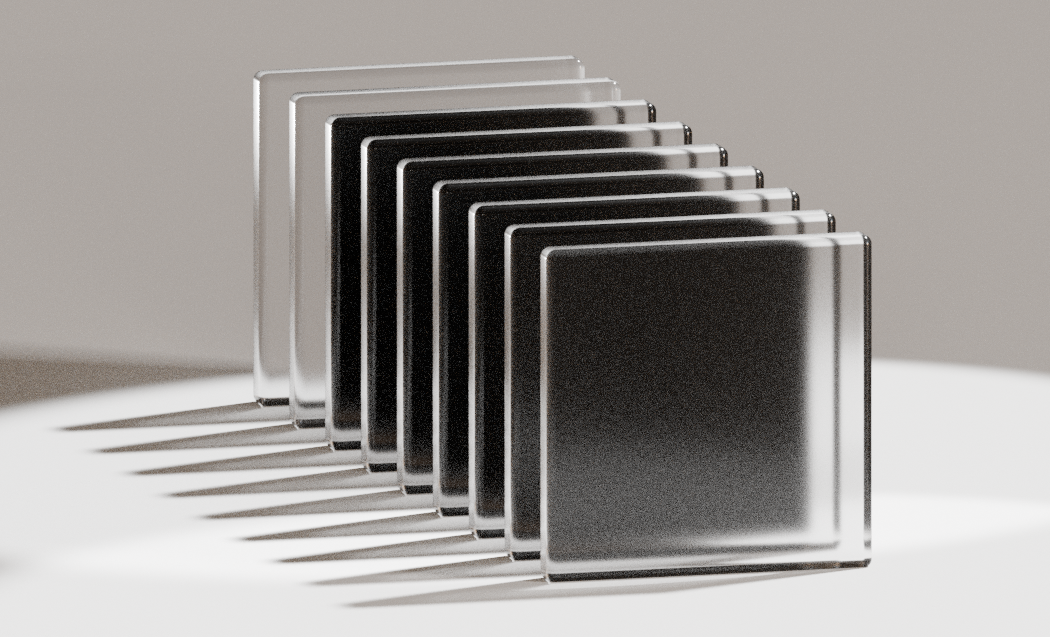

Render of multiple glass panes showing incorrect light transmission and shadows due to insufficient bounces.
Multiple glass panes with too little bounces. Compare with the image above. Here all the bounces were set to 4.

Achieving Correct Results

To render the 8 glass panes correctly, allowing light to pass through them and cast realistic shadows, you need to ensure your bounces are high enough. A good starting point for N transparent/transmissive layers is to have at least N bounces for both Transmission (to see through them) and Transparent (for shadows). If light needs to pass through, reflect off something behind, and pass back through, you'd need 2N Transmission bounces.

For our 8 panes, settings like these would be more appropriate:

  • Transmission Bounces = 8 (or more, e.g., 12-16 if reflections behind are important)
  • Transparent Bounces = 8 (or more, to match)

The default Blender settings (Total 12, Diffuse 4, Glossy 4, Transmission 12, Volume 0, Transparent 8) are often a good starting point and would handle our 8 panes reasonably well for seeing through them and for their shadows.

Blender's default Light Path settings can often handle moderately complex transparent scenes.
Blender's default settings are a solid base for many scenes, including those with glass.

Sometimes, for extremely complex scenes or specific effects like deep caustics through many layers of glass, you might see artists use very high bounce counts, such as those shown below. However, this is usually unnecessary for most projects and will significantly increase render times.

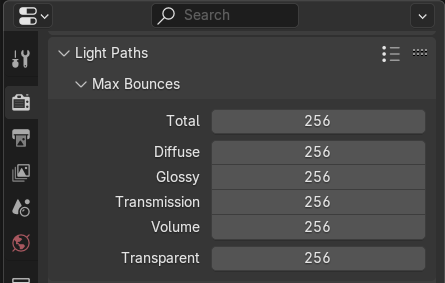

Example of extremely high Light Path bounce settings in Blender.
Extremely high bounce counts are rarely needed but show the extent of control available.

5. Performance vs. Quality: Finding the Balance

As mentioned, there's a direct trade-off:

  • Higher Bounces: More physically accurate, better global illumination, realistic refractions and reflections. Leads to significantly longer render times.
  • Lower Bounces: Faster render times. Can result in artifacts like dark areas, black refractions/reflections, or overly simple lighting.
The key is to use just enough bounces to achieve the desired level of realism without excessive render times. Start with Blender's default presets (e.g., "Full Global Illumination" if you need good indirect lighting) and adjust specific bounce types if you notice issues. For instance, if your glass looks dark, increase Transmission and Transparent bounces. If indirect lighting is weak, increase Diffuse bounces.

6. Other Notable Light Path Settings

Beyond Max Bounces, there are a few other settings worth knowing:

  • Clamping (Direct Light / Indirect Light): These settings can help reduce "fireflies" (random bright pixels) by capping the maximum brightness of individual light samples. Useful, but can reduce overall scene brightness or lose some highlights if set too aggressively.
  • Caustics (Reflective / Refractive): Caustics are bright patterns of light focused by curved reflective or refractive surfaces (e.g., light patterns at the bottom of a swimming pool or through a glass of water). Enabling these adds realism but can be very render-intensive. If they're not essential for your scene, disabling them can save time.
  • Fast GI Approximation: Found under the "Light Paths" section (often in an "Advanced" or similar sub-panel depending on Blender version). This can speed up diffuse global illumination calculations at the cost of some accuracy. Good for previews or when render time is critical.

7. Practical Tips & When to Adjust

  • Interior Scenes: Often benefit from higher Diffuse bounces (e.g., 4-8 or more) for soft, even indirect lighting.
  • Scenes with Lots of Glass/Liquids: Prioritize increasing Transmission and Transparent bounces. A minimum of 8-12 for each is a good starting point for complex scenarios.
  • Shiny Objects & Reflections: If reflections appear incomplete or cut off, increase Glossy bounces.
  • Troubleshooting Dark Renders: Before tweaking lights excessively, always check your bounce counts. Insufficient bounces are a common culprit.
  • Start Simple: Begin with Blender's default Light Path preset or "Full Global Illumination" preset. Only increase values if you observe specific problems. Test render small regions to see the impact of changes quickly.
  • Look at Shadows: If shadows through transparent objects appear too dark or solid, increase the `Transparent` bounces.

Take Control of Your Light!

Mastering Light Path settings in Blender Cycles is a significant step towards achieving truly photorealistic renders. While it might seem daunting initially, understanding what each bounce type does allows you to diagnose rendering issues and make informed decisions to balance quality with performance. Don't be afraid to experiment with these settings on your own projects. As you've seen with the glass pane example, having "enough" bounces, especially for Transmission and Transparency, can make all the difference.

So, next time your render looks a bit off, look into the Light Paths panel – you might find the solution is just a few bounces away!
